The Horizontal Shaft Impactor's space-saving design makes it ideal for installations where space is limited
It offers enhanced throughput capacity, allowing you to process more material in less time.
Delivers outstanding reduction ratios, efficiently breaking down materials to the desired size.

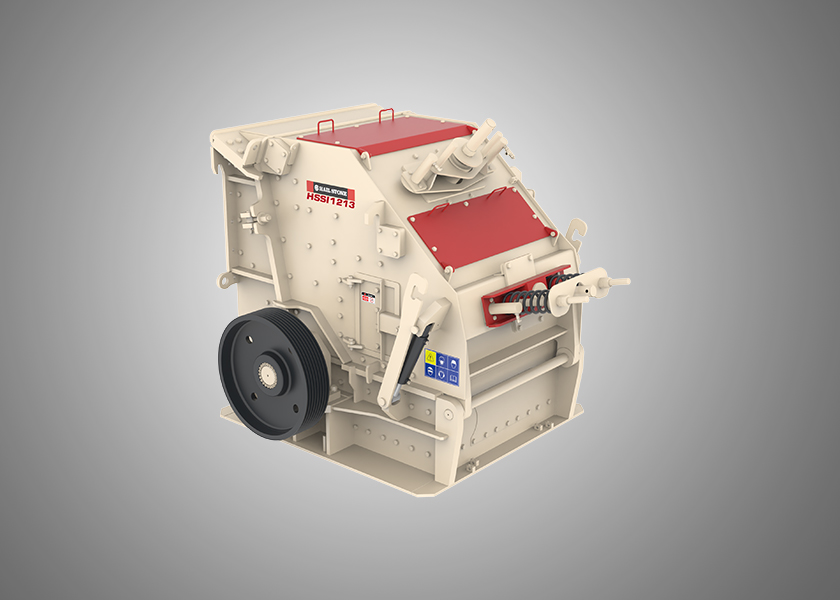

![HSSI-1213](https://hailstonein.com/wp-content/uploads/2024/09/Horizontal-Shaft-Impactor-1213.jpg")
HORIZONTAL SHAFT IMPACTOR - HS SERIES
180 - 280 mTPH
400 (15.7)
200kw - 250kw (250hp - 350hp)
| HORIZONTAL SHAFT IMPACTOR | HS Series | |
|---|---|---|
| Model | HSSI 1213 | HSTI 1110 |
| Power, kW (hp) | 200 - 250 (250 - 350) | 160 - 250 (220 - 340) |
| Capacity range, mtph | 180 - 280 | 180 - 250 |
| Dry weight, kg (lbs) | 14000 (30865) | 14750 (32518) |
| Maximum feed size, mm (in) | 400 (15.7) | 150 (5.9) |
| Feed opening (L x W), mm (in) | 1320 x 879 (52 x 34.6) | 1120 x 200 (44 x 7.8) |
| No. of blow bars | 4 | 4 |
| Application | Secondary/Tertiary | Tertiary |
| Formate | Name | Download |
|---|---|---|
| Horizontal Shaft Impactor | ||
