Hail Stone

Wheel mounted VSI

Features

features
High value Proposition
Offers excellent return on investment through top-tier performance and cost-efficiency.

01

features
Higher Quality
Produces high-grade products with superior consistency.

02

features
Minimised Cost
Lowers operational expenses through innovative design and efficient processing

03

features
High Classification
Ensures accurate material sorting for enhanced product quality

04

Models

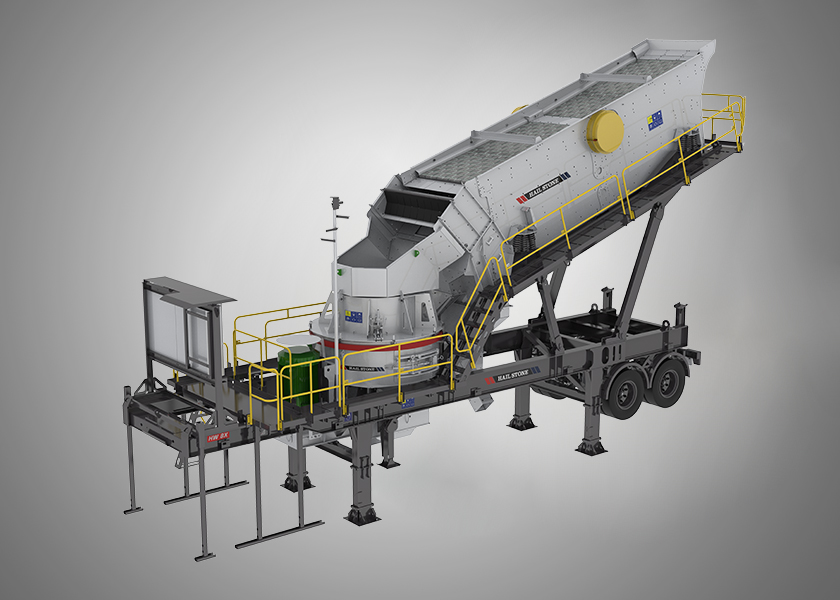

Hf 150 HF 150
Wheel mounted vsi - HW7X

HW7X

Feeding. size, mm (in)
32 (1.3)
  • Capacity, tph
    60 - 220
  • Length, mm (in)
    6000 (236.3)
HF 220 HF 220
Wheel mounted vsi - HW8X

HW8X

Power, kw (hp)
15 (20)
  • Weight, kg (lbs)
    32000 (1259.9)
  • Working (L x W x H), mm (in)
    12997 x 5512 x 7343 (512 x 217 x 289)

Technical Specification

WHEEL MOUNTED VSI HW-VSI Series
Model HW7X HW8X
CRUSHER
Model EP7X EP8X
Feeding. size, mm (in) 32 (1.3) 37 (1.5)
Capacity, tph 60 - 220 150 - 350
Screen
Model DS1860-4D DS1860-4D
Length, mm (in) 6000 (236.3) 6000 (236.3)
Width, mm (in) 1800 (70.9) 1800 (70.9)
Power, kw (hp) 15 (20) 15 (20)
Drive power
Total power,kW (hp) 160 (220) 225 (300)
Dimensions
Transportation (L x W x H), mm (in) 13940 x 2540 x 4650 (548.9 x 100 x 183) 14004 x 2554 x 4650 (551.4 x 100.2 x 183)
Working (L x W x H), mm (in) 12937 x 5512 x 7343 (509 x 217 x 289) 12997 x 5512 x 7343 (512 x 217 x 289)
Weight, kg (lbs) 30500 (1200.8) 32000 (1259.9)
